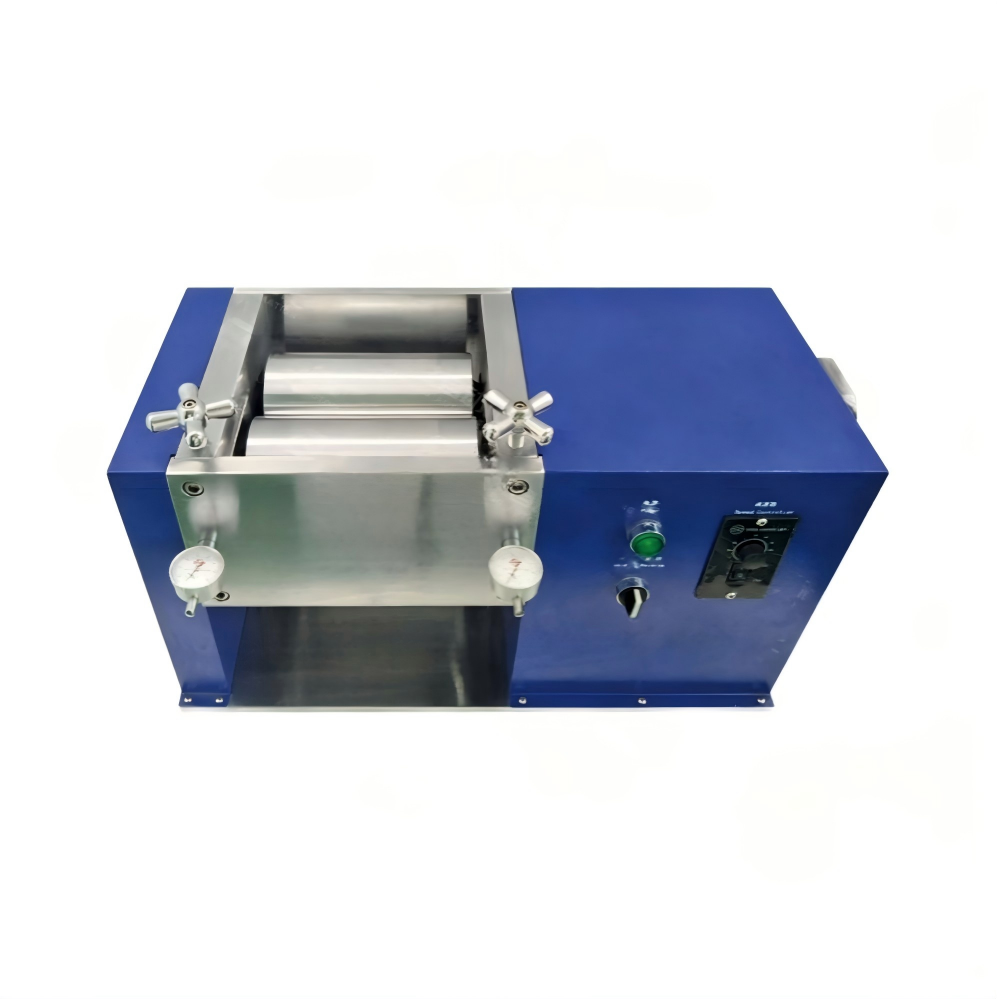

Atomfair-ELR7049 Electric Rolling Mill
Product Model
Atomfair-ELR7049 (ELR is the abbreviation of Electric Rolling Mill)
Product Overview
Atomfair-ELR7049 Electric Rolling Mill is mainly suitable for electric rolling of battery materials, small amounts of precious metal materials (such as gold and silver), non-ferrous materials (such as copper and aluminum) in laboratories. It features adjustable rolling thickness and simple operation, especially suitable for thinning and density increasing of lithium battery plates for clean energy materials.
Functional Features
- Horizontal operation, suitable for rolling small pieces of materials.
- Adjustable rolling thickness and speed, easy to use.
- Motor can rotate forward and reverse, facilitating material withdrawal if problems are found during operation.
- Adopts gear drive to realize twin-roll rolling.
Technical Parameters
| Parameter Item | Specification |
|---|---|
| Roll Diameter | Φ96mm |
| Roll Surface Hardness | Above HRC62 |
| Roll Finish | Above Ra 0.4μm |
| Rolling Thickness | 0~2mm |
| Rolling Width | 0~100mm |
| Roll Placement | Horizontal |
| Voltage & Frequency | AC220V/50HZ |
| Power | 200W |
| Feeding Speed | 0~40mm/s |
| Overall Dimension | L500mm * W360mm * H620mm |
| Equipment Weight | 70KG |
If you’re interested, have any questions, or have specific customization requirements, please feel free to contact us at inquiry@atomfair.com.
