Description

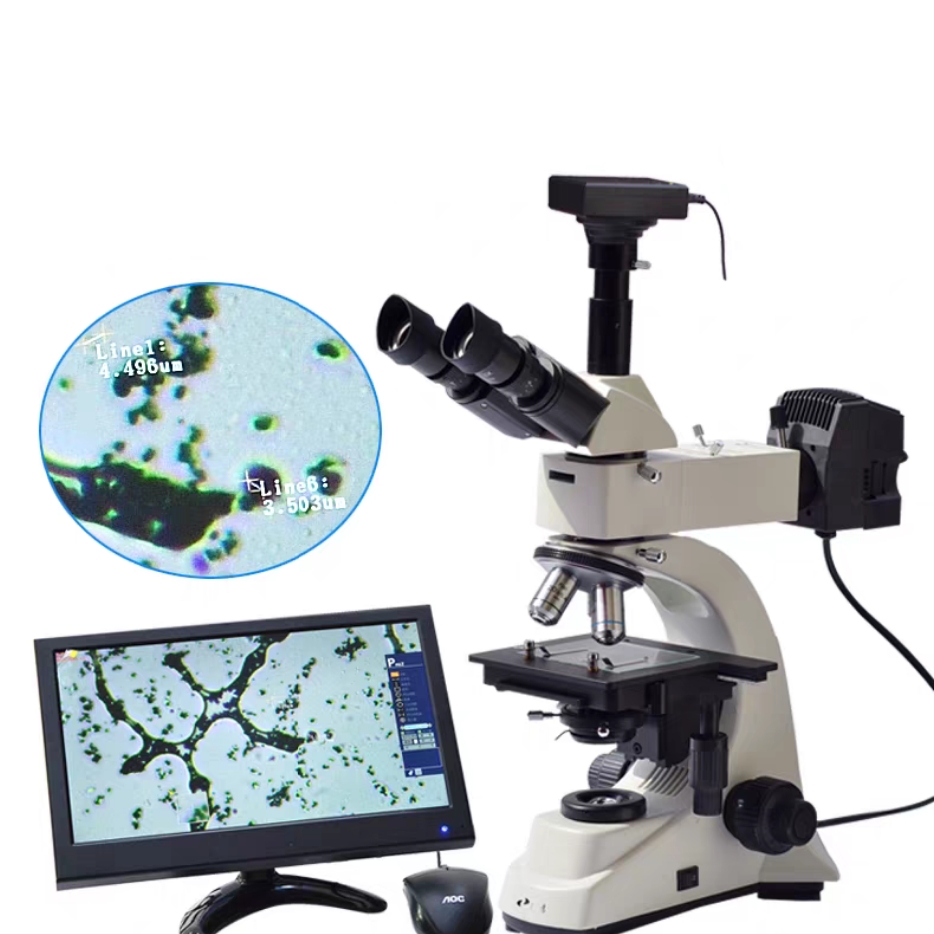

Atomfair Dust Dispersion Measurement System
Product Overview
Atomfair Dust Dispersion Measurement System is a professional microscopic image analysis equipment developed in accordance with international general standards, specifically designed for workplace dust testing, focusing on the accurate analysis of key parameters such as dust particle size distribution and quantity ratio. Integrating a high-magnification microscope, high-definition camera and intelligent analysis software, the system supports two detection methods: membrane dissolution smear method and natural sedimentation method. It can automatically count the size, quantity and proportion of dust particles in different ranges, with easy operation and reliable data, providing professional technical support for dust hazard assessment and occupational health protection.
Core Functions
- Precise Particle Analysis: Automatically extract dust particle morphology, calculate parameters such as particle size, area, roundness and aspect ratio, and count the average diameter and proportion of each particle size range;
- Flexible Detection Methods: Compatible with membrane dissolution smear method and natural sedimentation method, adapting to dust sample collection and detection needs in different scenarios;
- Intelligent Data Management: Supports manual addition/deletion and correction of particles, automatically generates standardized test reports, and data can be stored, exported and shared for easy filing and traceability;
- High-Definition Image Acquisition: 12MP high-definition camera (optional 20MP) combined with professional optical system, clearly captures dust particle images to ensure analysis accuracy.
Technical Parameters (International Standard)
| Item | Specification |
|---|---|
| Eyepiece Configuration | Wide-field WF10X (Φ20mm), graticule eyepiece, dust eyepiece |
| Plan Achromatic Objective Lenses | PL 4X/0.10, PL 10X/0.25, PL 40X/0.65 (spring), PL 100X/1.25 (spring, oil); optional PL 20X/0.40 (compatible with five-hole turret) |
| Eyepiece Tube | Trinocular, 30° inclined |
| Turret | Four-hole (optional five-hole) |
| Light Source | 6V 20W halogen lamp, adjustable brightness |
| Condenser | Abbe condenser (N.A.1.25), vertically adjustable |
| Stage | Dual-layer mechanical mobile stage (size: 210mm×140mm, moving range: 75mm×50mm) |
| Focusing Mechanism | Coaxial coarse and fine focusing, fine focusing division value 2μm, with locking and limiting device |
| Filter | Blue filter, frosted glass filter |
| Objective Micrometer | C1 high-precision type, division value 0.01mm, total length 1mm |
| Camera System | VSE1200 high-definition digital camera (12MP, USB3.0 interface); optional VSE2000 (20MP) |
| Analysis Software | UV-G Dust Dispersion Measurement Image Analysis Software |
| Optional Configuration | Analysis system workstation (computer) |
Product Features
- Excellent Optical Performance: Plan achromatic objective lenses combined with high-brightness adjustable light source, clear and stable imaging, ensuring accurate identification of tiny dust particles;
- Comprehensive Analysis Functions: Covers multi-dimensional analysis of particle morphology, size, quantity and proportion, meeting international general dust dispersion testing requirements;
- Easy & Intelligent Operation: The software automatically completes particle extraction and statistics, supports manual correction, and the Chinese interface is intuitive and easy to understand, no complex professional training required;
- Strong Adaptability: Compatible with two mainstream detection methods, meeting workplace dust testing needs in power, coal, metallurgy, chemical and other industries;
- International Standard Adaptation: Fully follows international general testing logic and technical specifications, no national standard-related expressions, adapting to global multi-region usage scenarios.
Supporting Accessories
Membrane dissolution smear tools, natural sedimentator, glass slides, cover slips, sample preparation kit, lens cleaning tools, USB data cable, software installation package and operation manual
