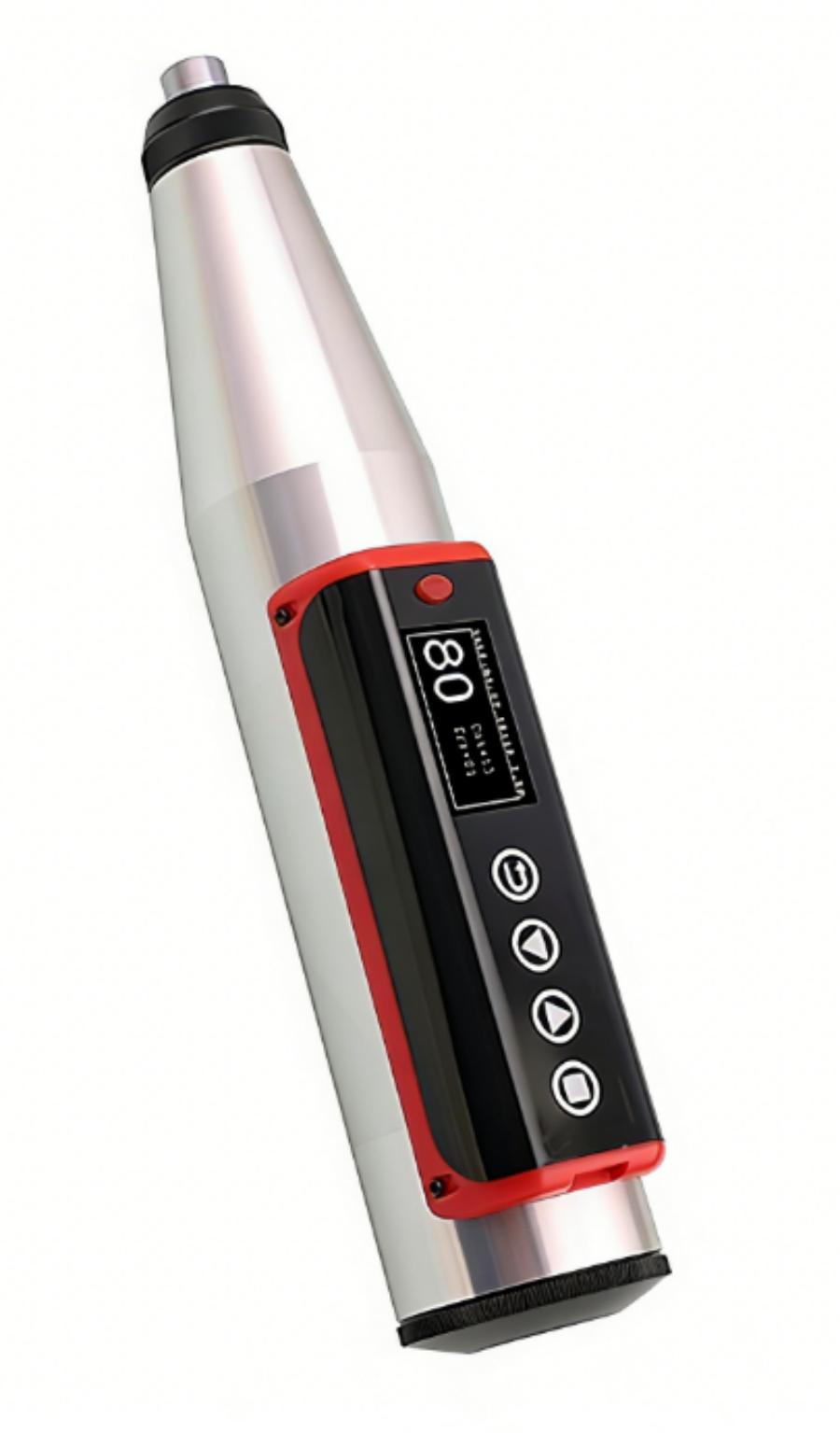

Atomfair-DRH586 Integrated Digital Rebound Hammer
Brand: Atomfair
Product Overview
The Atomfair-DRH586 Integrated Digital Rebound Hammer is a high-tech product independently developed and manufactured by Atomfair in accordance with relevant international industry standards. Specifically designed for on-site testing of concrete compressive strength in the construction industry, it is suitable for non-destructive measurement of compressive strength of ordinary concrete in various construction projects. With its integrated structural design and advanced digital display technology, it provides efficient, accurate and convenient testing solutions for engineering quality inspection work.
Product Applications
This integrated digital rebound hammer is widely applicable to engineering quality testing organized by government metrology departments, as well as on-site quality spot checks by various engineering quality supervision agencies and supervision units. It enables inspectors to obtain the compressive strength test results of the inspected concrete structures on site in real time, greatly improving the engineering quality testing efficiency of various inspection institutions. It is an essential tool for non-destructive testing of concrete strength in construction projects.
Key Features
- Independently developed in line with international standards for rebound testing of concrete compressive strength, with complete independent intellectual property rights.
- Integrated structural design: The main unit and sensor are organically integrated into one, no connecting wires required, easy to carry and low failure rate. The digital display module can be combined with any mechanical rebound hammer produced by Atomfair, easy to install and save repeated purchase costs.
- Equipped with OLED LCD screen and touch buttons, intuitive and convenient operation, sensitive response and not easy to age.
- Unique automatic recording function effectively improves measurement efficiency.
- Non-contact photoelectric sensor is adopted, which completely avoids mechanical wear, poor contact and other defects easily occurring in potentiometer or other contact sampling methods. It has the advantages of high precision and long service life, and retains the mechanical pointer scale for double reliability guarantee.
- Built-in rechargeable lithium battery, continuous working time over 10 hours after full charge, meeting long-term on-site testing needs.
- Large-capacity data storage: Up to 200 standard components can be stored, and each standard component can detect up to 50 test areas, fully meeting the storage needs of actual testing work.
- Component and test area parameters can be directly input on site, adapting to flexible on-site testing scenarios.
- Equipped with USB communication interface, supporting virtual U disk mode, no need to install any drivers, realizing easy online data transmission with computers.
- Real-time clock and calendar function, automatically recording the testing date and time of each component, facilitating the traceability and management of testing data.
- Advanced low-power consumption power management system: Adjustable screen backlight brightness and automatic sleep time, with automatic shutdown function to further extend the battery life of the instrument.
Technical Specifications
- Data Processing Standard: Complies with international standards for rebound testing of concrete compressive strength
- Nominal Kinetic Energy: 2.207J
- Impact Spring Stiffness: 785 N/m
- Impact Hammer Stroke: 75?
- Anvil Calibration Rebound Value: 80 ± 2
- Sampling Indication Consistency: ≤ ± 1 (Difference between digital output sampling value and vernier reading)
- Display Screen: 128×64 resolution, supporting 3-level backlight adjustment
- Data Storage Capacity: 200 standard components (50 test areas per component)
- Power Consumption: ≈100mA under maximum backlight mode
- Communication Interface: USB2.0 Full Speed
- Weight: 1.1 kg
Package Included
- 1× Plastic Storage Case for Integrated Digital Rebound Hammer
- 1× Atomfair-DRH586 Integrated Digital Rebound Hammer Main Unit
- 1× USB Data Cable for Computer Connection
- 1× 5V 1A Charger
- 1× Program CD for Integrated Digital Rebound Hammer
- 1× User Manual for Integrated Digital Rebound Hammer
Important Notes
If the product is not used for a long time, it is recommended to charge it every six months to prevent damage to the internal lithium battery due to over-discharge.
