Description
Product Introduction

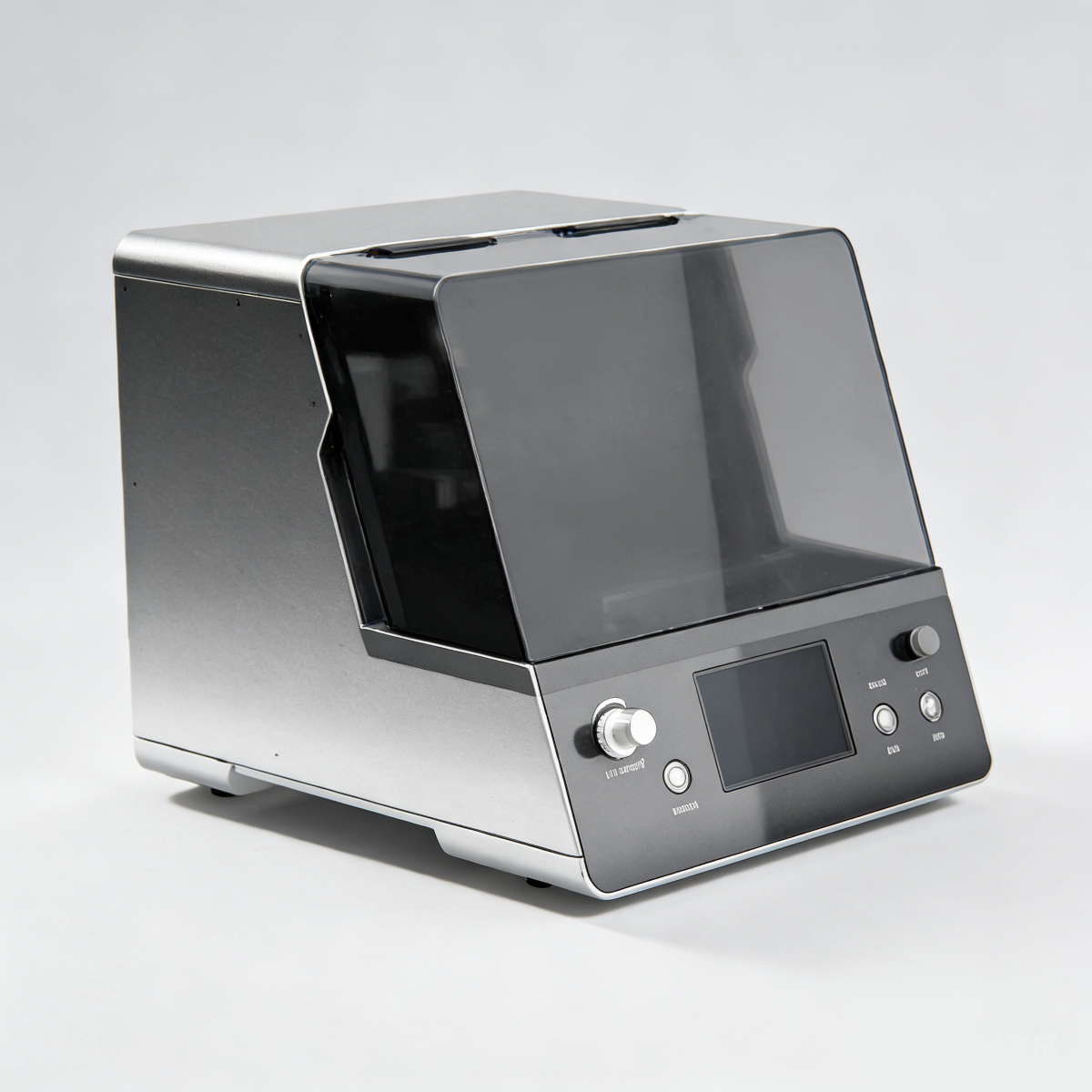

The AF-SN-B3DP is a desktop-grade, high-performance single-nozzle 3D printing system designed for battery R&D and manufacturing. It enables precise, flexible preparation of battery electrodes and electrolyte membranes, supporting multi-material slurries and complex structural designs to accelerate the development of next-generation battery technologies.
Product Basic Information
| Category | Details |
|---|---|
| Product Code | AF-SN-B3DP |
| Overall Dimensions | 512 × 495 × 594 mm (excluding 15 mm anchor feet) (L×W×H) |
| Working Range | X: 170 mm, Y: 120 mm, Z: 50 mm |
| Single-layer Printing Thickness | 20 ~ 200 μm |
| Nozzle Diameter | 60 μm ~ 1 mm |
| Minimum Line Width | 0.1 mm |
| Minimum Line Spacing | 0.1 mm |
| Number of Printing Heads | 1 |
Key Product Features
-
Compatible with Multi Materials
Supports positive/negative battery slurries, oxide/polymer electrolyte slurries, and metal slurries, offering broad material adaptability for diverse battery chemistries.
-
Rapid Electrode Preparation
Delivers an efficient preparation process, ideal for irregular shapes, porous electrodes with ultra-thin electrolyte membranes, and thick electrodes.
-
Optimized Solid-Solid Interfaces
Provides excellent interface optimization solutions, with high flexibility in electrode sheet structure design.
-
Preparation of Complex Electrode Sheets
Enables outstanding flexibility in electrode sheet structure design, suitable for fabricating complex and unique electrode architectures.
