Description

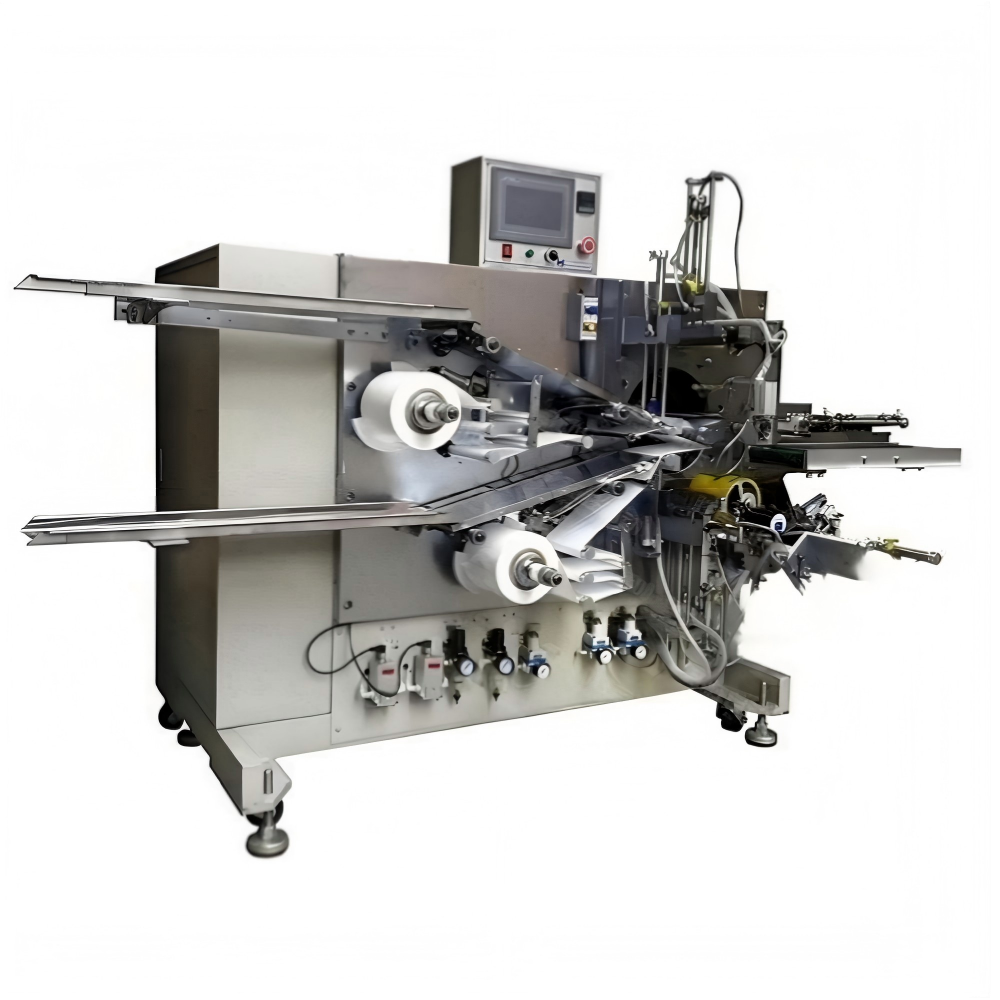

Atomfair Cylindrical Semi-Automatic Winding Machine

Product Information

Model
Atomfair-CSWM-8632

Launch Date
September 09, 2024

Application Scope
This machine is mainly used for the precision winding of cylindrical lithium-ion battery cells.

Equipment Specifications

• Dimensions: 1750mm × 1250mm × 1600mm
• Weight: 500KG
• Version: V2.0

Product Description

The positive and negative electrodes are manually fed into the winding section, interleaved with separator, and wound according to process requirements. The machine automatically applies termination tape and discharges the finished cells.

Features

• Adopts a single-needle opposite-penetration winding needle structure for high winding stability.
• Manual electrode feeding with automatic winding, needle changing, termination tape application, and cell discharging, greatly improving operation efficiency.
• Termination tape is applied transversely (perpendicular to the tabs), ensuring flat and precisely positioned application without stretching the cell, delivering stable and reliable taping results.
• Winding speed is flexibly adjustable to meet different production processes.
• Dual active separator unwinding with tension proximity switch control; tension is automatically and smoothly adjusted during winding, with independent upper and lower tension control to ensure winding quality.
• Supports separator outer-wrap finishing for improved cell regularity.
• Finished cells are free from damage, core extraction, and electrode misalignment, meeting quality standards.
• User-friendly operation with simple and fast specification adjustment and changeover, reducing manual operation difficulty.

Technical Parameters

1. Core Dimension Parameters

• Separator width: 30–75mm
• Winding needle diameter: ∮1.8–∮6.0mm (customizable per customer requirements)
• Electrode width: 28–73mm
• Applicable cell outer diameter: ∮6mm–∮35mm

2. Material Specifications (Unit: mm)

Material Type	Length	Width	Thickness	Inner Diameter	Outer Diameter
Positive Electrode	150–1000	28–73	0.1–0.2	–	–
Negative Electrode	150–1000	28–73	0.1–0.2	–	–
Separator (Roll)	–	30–75	0.012–0.045	76.2	250
Termination Tape (Roll)	–	8–60	0.01–0.035	76.2	150

3. Capacity

5–10 pcs/min (adjustable based on electrode length and width)

4. Winding Precision

Under qualified material conditions, the machine achieves the following precision:

• Electrode width error ≤ ±0.2mm
• Electrode “S” bend error ≤ ±1mm/500mm
• Separator roll taper error ≤ ±0.2mm

Winding Precision Standards:

• Separator alignment error ≤ ±0.5mm
• Electrode alignment error ≤ ±0.5mm
• Supports negative electrode wrapping positive electrode and separator wrapping negative electrode; finished cell cross-section alignment ≤ ±0.5mm

5. Qualification Rate

≥98% (excluding non-equipment factors)
