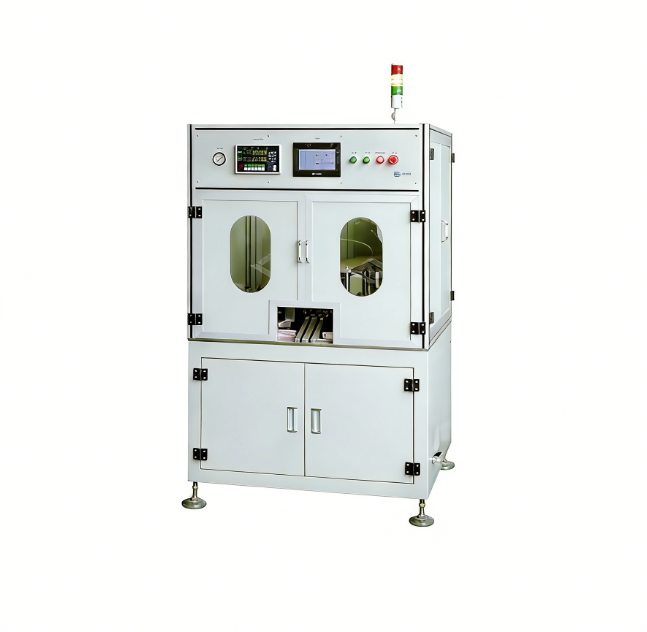

Atomfair-CSM689 Precision Digital Cell Shaping Machine

1. Application Scope

Suitable for shaping of large cylindrical lithium batteries and supercapacitor cells, flattening and compacting the positive and negative end faces to facilitate laser welding with upper and lower current collectors.

2. Basic Information

• Product Model: Atomfair-CSM689
• Version: V2.0
• Equipment Dimensions: L1000mm ? W800mm ? H1600mm
• Weight: 800kg

3. Product Description

This machine is a patented product independently developed by our company. It is mainly suitable for shaping large cylindrical lithium batteries and supercapacitor cells, flattening and compacting the positive and negative end faces to facilitate laser welding with upper and lower current collectors.

4. Functional Features

1. Adopt multi-section shaping heads to press the aluminum foil substrate in one direction, enabling better welding firmness between the overlapping substrate and the current collector.
2. Fully automated design, which can automatically complete feeding, pressing, primary pre-shaping, secondary pre-shaping, final shaping, short-circuit testing and discharging.
3. Shaping data is detected and displayed in real time by linear scale, with precise, intuitive and convenient adjustment.
4. PLC control with human-machine interface, easy to access automated production lines.
5. Precision mold design ensures cell shaping accuracy.
6. Optimized appearance structure, exquisite and beautiful aluminum profile cover, easy to operate.

5. Technical Parameters

Item	Specification
Applicable Products	Cylindrical lithium batteries, supercapacitors (customizable according to customer requirements)
Air Source	0.5±0.7MPa (adjustable)
Power Supply	220V/50Hz
Power	0.5kW
Overall Dimensions	L1000mm ? W800mm ? H1600mm
Weight	800kg

If you?re interested, have any questions, or have specific customization requirements, please feel free to contact us at inquiry@atomfair.com.
