Description

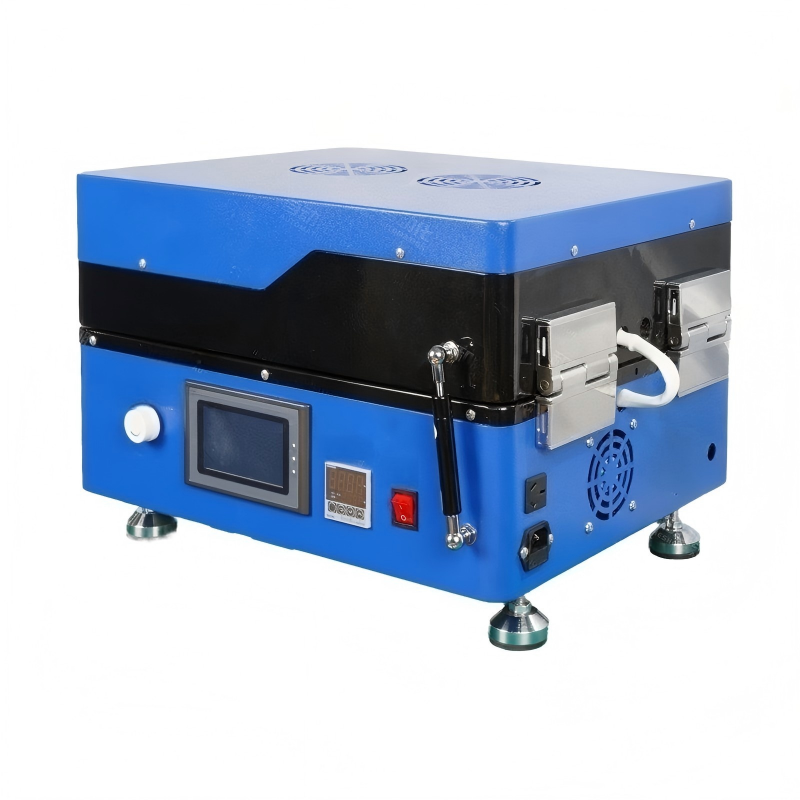

Atomfair Automatic Film Coating & Drying Machine

Product Model

Atomfair-COA-821

Release Date

2022-03-11

Version

V2.0

Dimensions & Weight

• External size: 500 × 310 × 330 mm (L×W×H)
• Vacuum plate: 415 × 200 × 30 mm
• Weight: 50 kg

Product Overview

Automatic film coater with heating system, widely used for high-temperature film research including ceramic, crystal, battery material and nano films, suitable for advanced high-temperature film formation.

Key Features

• Coating speed adjustable from 0–100 mm/s
• Digital display temperature control drying system
• Stroke adjustable between 10–300 mm via limit switch
• Vacuum aluminum plate for fast substrate fixing and removal
• Adjustable film applicator

Technical Specifications

• Coating speed: 0–100 mm/s
• Max stroke: 300 mm
• Vacuum plate: aluminum vacuum plate
• Blade adjustment range: 0.01–3.5 mm
• Power supply: 220V / 50Hz
• Weight: 50 kg
• With heating & drying system

If you’re interested, have any questions, or have specific customization requirements, please feel free to contact us at inquiry@atomfair.com.
