Description

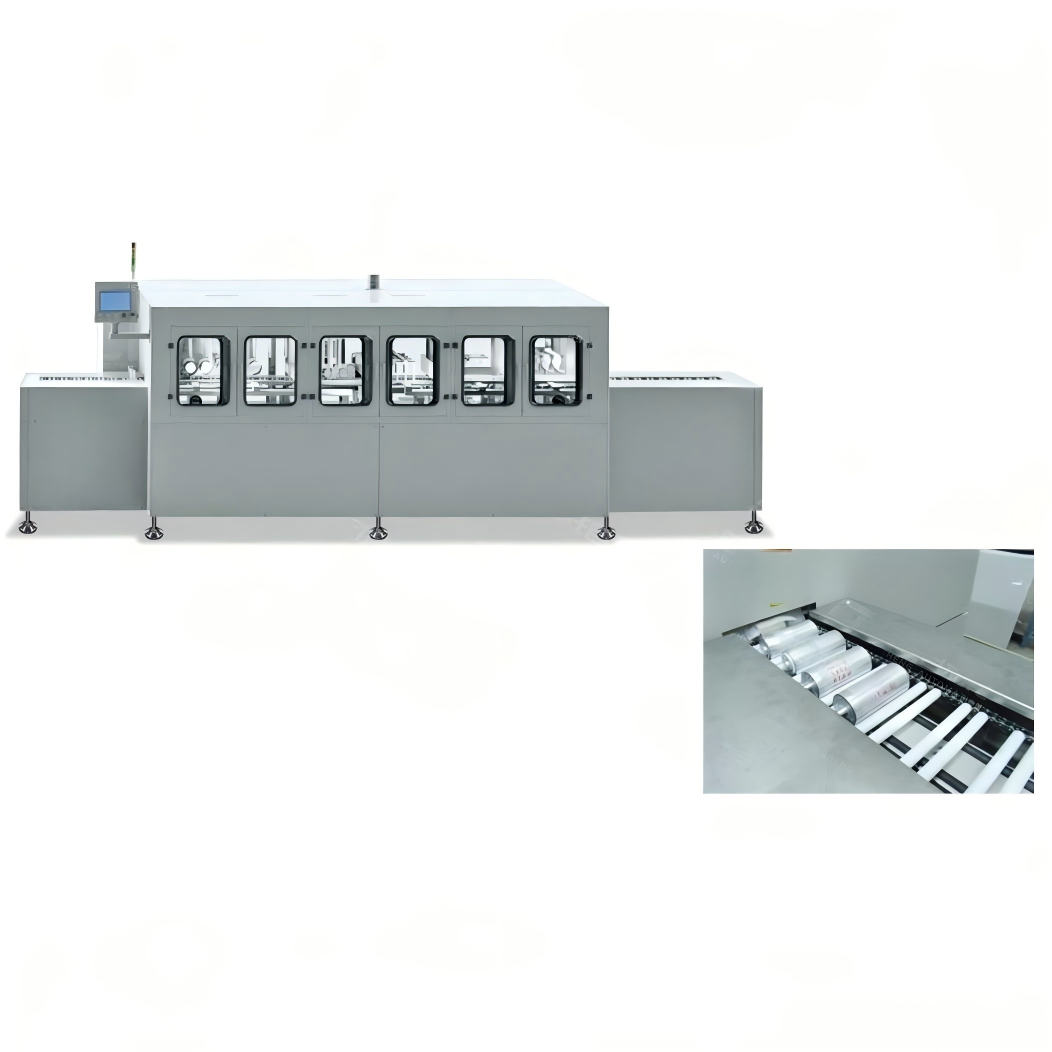

Atomfair Automatic Lithium-Ion Battery Cleaning Machine

Product Model

Atomfair-CLN-249

Release Date

2024-09-05

Version

V2.0

Dimensions & Weight

• Dimensions: 6100 × 1600 × 2150 mm
• Weight: 2500 kg

---

Product Overview

Automatic cleaning machine for lithium-ion batteries after sealing. Integrates feeding, spraying, washing, air cutting, rinsing and drying functions.

Key Features

• Online brush cleaning for battery surface and end faces
• Multiple high-thrust air nozzles for fast water removal and drying
• Uses only clean water, no cleaning agent required
• PLC control with fault alarm and energy-saving functions
• Adjustable for batteries 50–180mm in length
• Suitable for high-volume automatic online cleaning
• High-efficiency tubular hot air heater with low energy consumption
• Overflow, filtration and water recycling system

Technical Specifications

• Efficiency: ≥8 PPM
• Utilization rate: ≥95%
• Qualified rate: ≥99%
• Total power: 30 kW
• Power supply: 3-phase 380V 50Hz, voltage fluctuation ±10%
• Compressed air: ≥0.6 MPa, flow >120 m³/h
• Water supply: 0.5 m³/h (pure or tap water, recyclable)
• Load capacity: >500 kg/m²
