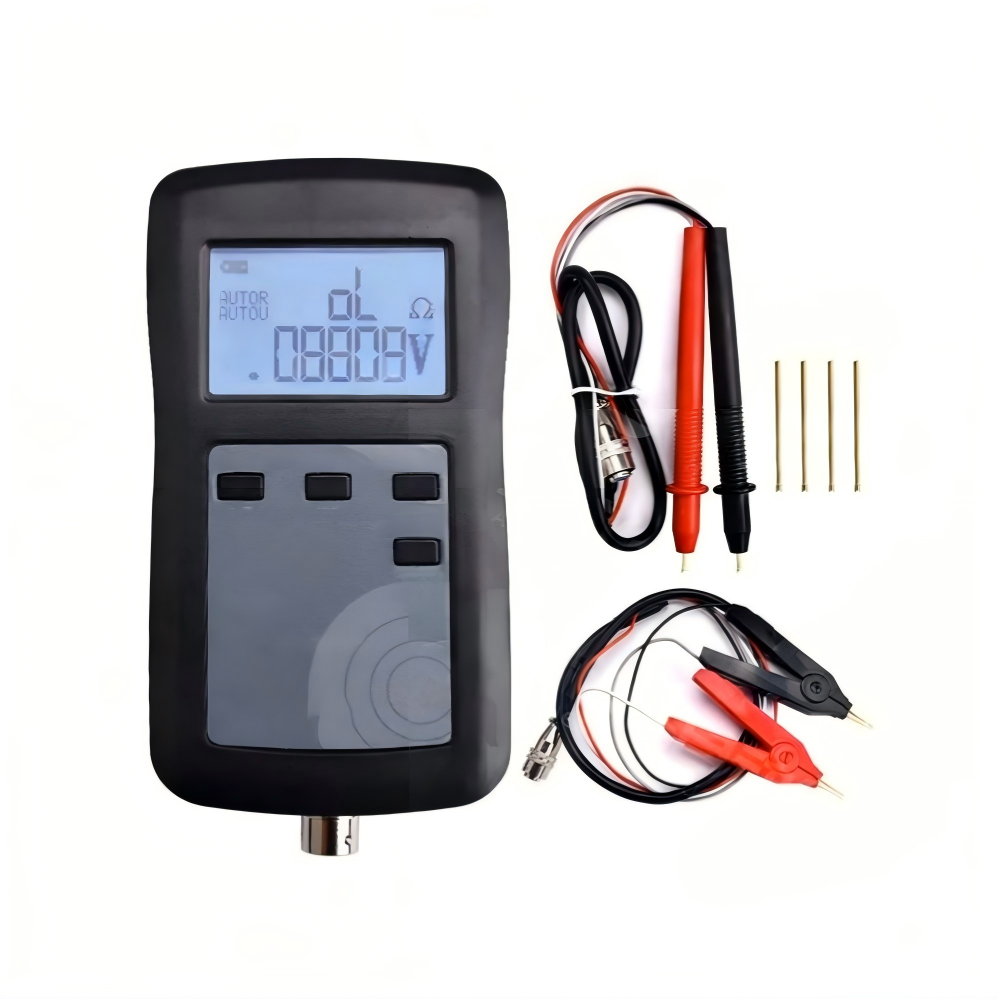

Atomfair BT82 Battery Voltage & Internal Resistance Tester

Product Introduction

Atomfair BT82 Battery Voltage & Internal Resistance Tester is a high-precision measuring instrument specifically designed for secondary batteries (lead-acid, nickel-cadmium, nickel-metal hydide, lithium-ion, and lithium-polymer batteries). It enables accurate testing of open-circuit voltage and AC internal resistance of batteries, featuring simple operation, reliable performance, and high cost-performance ratio.

Key Features

• Four-Terminal Measurement Method: Ensures high accuracy and stability of test data.
• Historical Data Viewing: Supports querying previous test results for easy tracking and comparison.
• Comparator Function: Allows setting upper and lower limits (10 groups for both voltage and internal resistance). Enables ON/OFF setting of buzzer alarm; triggers buzzer and red indicator for out-of-limit values, while green indicator signals qualification.
• Large-Capacity Storage: Stores up to 100,000 groups of test data for subsequent analysis and review.
• Multi-Point Calibration: Supports zero calibration (simultaneous calibration of voltage and internal resistance zero points), voltage calibration (external DC 3V~50V reference), and AC internal resistance calibration (10~4000m? precision resistor reference).
• Expanded External Control: Equipped with external control terminals for automated test expansion and optional USB communication (not included in standard configuration).

Technical Specifications

Test Item	Test Range	Resolution	Basic Accuracy (RD = Range Value)
Voltage	0-5V	0.001V	±(0.5%RD + 0.003V)
Voltage	0-50V	0.01V	±(0.5%RD + 0.003V)
Internal Resistance	0.01-40m?	0.01m?	±(0.5%RD + 0.05m?)
Internal Resistance	0.1-400m?	0.1m?	±(0.5%RD + 0.5m?)
Internal Resistance	1-4000m?	1m?	±(0.5%RD + 5m?)

Application Scope

Widely used in testing open-circuit voltage and AC internal resistance of various secondary batteries, meeting the testing needs of different battery production, maintenance, and quality inspection scenarios.

If you?re interested, have any questions, or have specific customization requirements, please feel free to contact us at inquiry@atomfair.com.
