Description

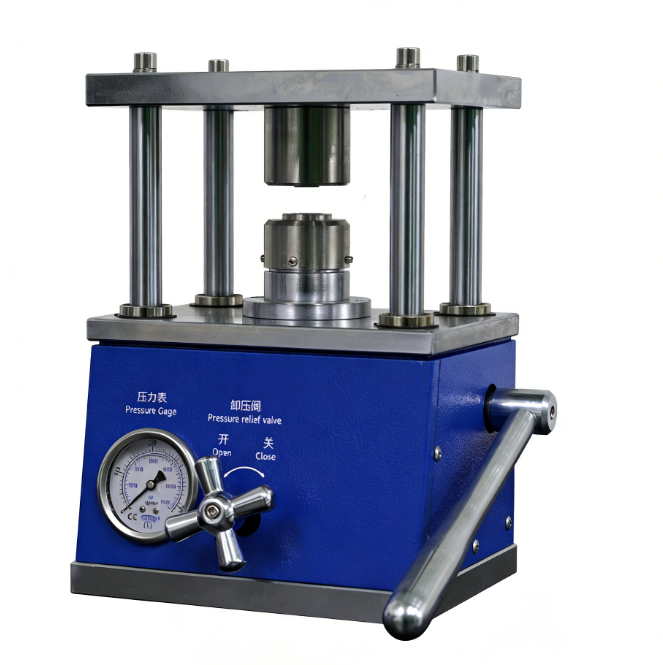

Atomfair Button Battery Disassembler Product Information

Model: Atomfair?BatteryDisassembler?5729

Launch Date: 2024?01?27

Version: To be updated

Product Description

This machine is mainly used for sample extraction and research of internal battery materials.
The standard configuration supports disassembly of all CR20 series button batteries, featuring compact size, easy operation and precise disassembly.
With interchangeable molds of different specifications, it can flexibly perform additional functions such as crimping / sealing and powder tableting, making it suitable for multiple application scenarios.

Features

• Compact structure and user?friendly operation; can be directly placed inside a glove box for operation, ideal for laboratories and other precision working environments.
• Precision mold design ensures accurate and reliable disassembly; sturdy steel structure guarantees stability and safety during operation.
• Special hydraulic structure design greatly reduces operating force and improves usability.
• Equipped with a safety oil valve to flexibly adjust pressure according to actual needs; supports setting a maximum pressure limit to effectively avoid damage to the machine or batteries caused by excessive pressure from misoperation.
• Built?in pressure gauge for real?time monitoring and precise control of crimping pressure, ensuring operation accuracy.
• Standard configuration is universally compatible with CR20 series button batteries; models such as CR2450 and CR1620 can be disassembled by replacing only partial mold parts, providing wide compatibility.
• Simple and attractive appearance, reasonable structural design, easy post?maintenance and low operating cost.

Technical Parameters

• Structural Material: High?strength chrome steel with eco?friendly electroplating, rust?proof for long service life.
• Dimensions: 232mm ? 165mm ? 320mm (metric standard)
• Net Weight: 25 kg
• Operating Force: Hand lever operating force ? 5.5 kg
• Mold Material: Imported high?precision material from Japan, ensuring mold accuracy and durability.

If you?re interested, have any questions, or have specific customization requirements, please feel free to contact us at inquiry@atomfair.com.
