Description

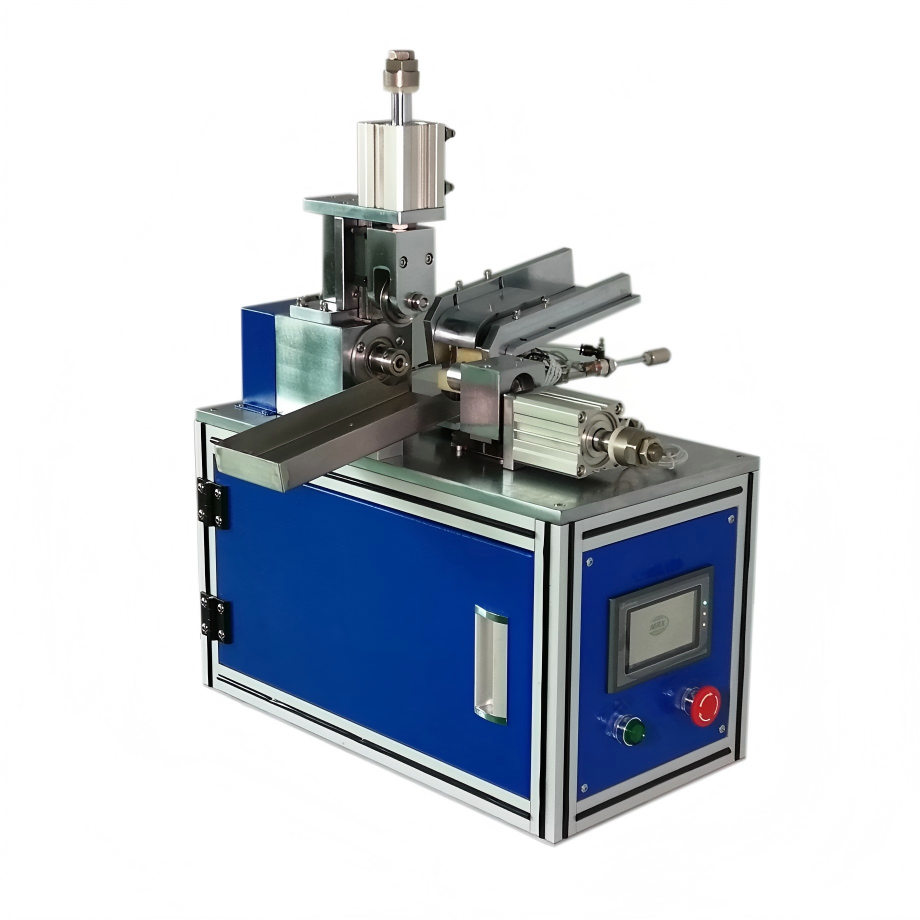

Atomfair Automatic Cylindrical Battery Grooving Machine

Model: Atomfair?CGG742
Launch Date: 2022?03?01
Version: V2.0
Dimensions: 620 (L) ? 520 (W) ? 1200 (H) mm
Weight: 85KG

Application Scope

This machine is essential equipment in cylindrical battery production and processing.

Working Description

Cylindrical steel shells with installed cells are neatly placed in the grooving guide. After adjusting dimensions per process requirements, start the machine to automatically feed into the fixture, and the hob cuts to complete grooving with a dedicated anti-flaring device.

Key Features

• Automatic feeding and discharging, high efficiency, time and labor saving
• Adjustable grooving size, high precision and stable dimensions
• Compatible with 18650, 21700, 26650 and other cylindrical batteries by changing molds
• Compact size, elegant appearance, easy operation
• PLC touch screen control, convenient parameter setting, high automation

Technical Parameters

Item	Specification
Production Efficiency	30?40 pcs/min
Grooving Depth	1?1.7mm; Width 1.0?2mm (hob mold replacement required)
Grooving Concentricity	0.05mm
Power Supply	AC380V, 0.65KW
Air Pressure	0.4?0.7MPa
Dimensions	620?520?1200mm
Weight	85KG

If you’re interested, have any questions, or have specific customization requirements, please feel free to contact us at inquiry@atomfair.com.
