Description

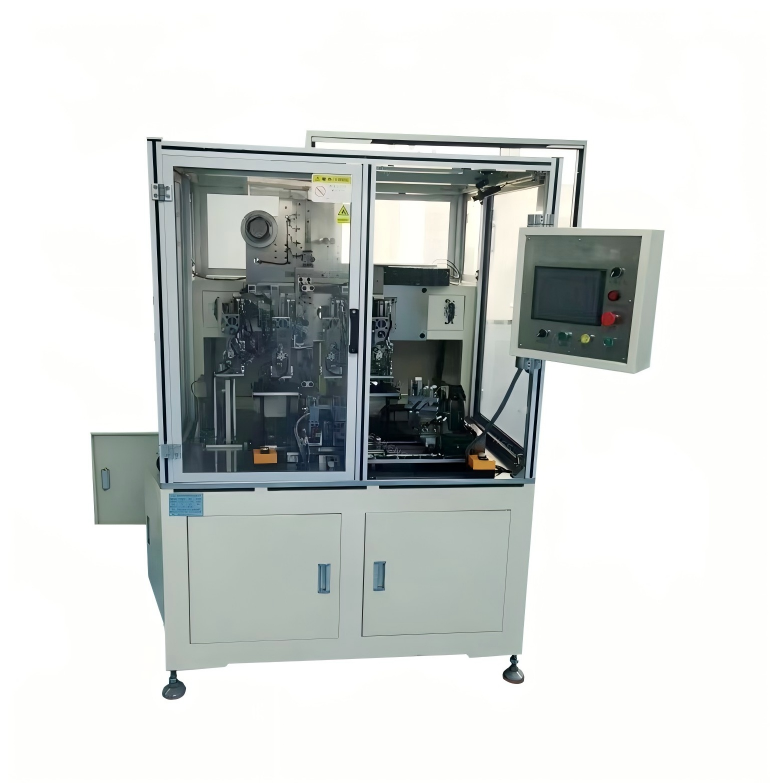

Atomfair Single-station Automatic Stacking Machine

Product Model

Atomfair-ASM-815

Release Date

2024-09-05

Version

V2.0

Dimensions & Weight

• Dimensions: W2200 × L1730 × H2200 mm
• Weight: 2 T

Product Overview

This machine is mainly used for Z‑shape stacking of square lithium‑ion power battery cells. It automatically takes electrodes, pre‑positions, stacks with controlled diaphragm, heat cuts, and outputs finished cells.

Key Features

• Active diaphragm unwinding, tension control, correction & static elimination (alignment accuracy ±0.2mm)
• High stacking accuracy up to ±0.3 mm
• High efficiency: 1.0–1.2 s per piece
• Dust protection for electrode magazine and pre‑positioning
• Stable module design with locating pins
• Multi‑sheet & missing sheet detection protection

Technical Specifications

• Single stacking time: 1.0–1.2 s/pcs
• Single cell auxiliary time: ≤ 11 s
• Electrode‑diaphragm alignment: ±0.3 mm
• Diaphragm end alignment: ±0.3 mm
• Adjacent electrode alignment: ±0.3 mm
• Overall electrode alignment: ±0.5 mm
• Stacking layers: adjustable
• Unloading: robot transfer
• Utilization rate: 98%
• Qualified rate: 99%
