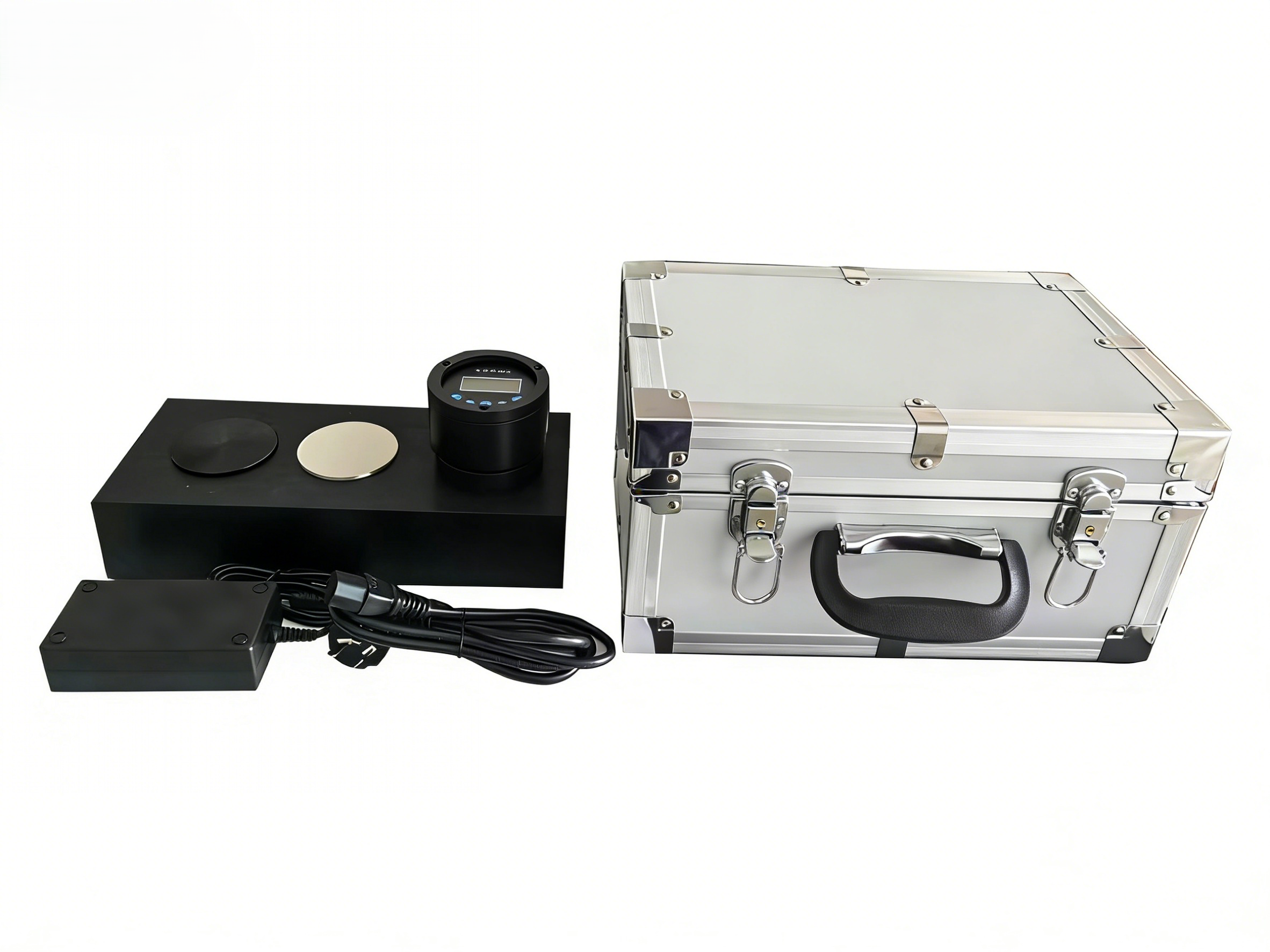

Atomfair-HE-369 Hemispherical Emissivity Tester
1. Product Overview
Atomfair-HE-369 Hemispherical Emissivity Tester is a portable professional testing device specially designed for coated glass, reflective thermal insulation coatings, camouflage coatings and aerospace special coatings. Its core performance complies with the international standard ASTM C1371-2004a (2010)e1, with core advantages of convenient operation, stable performance and high cost performance. The total weight is ＜1kg, equipped with a portable hand case for easy on-site mobile testing; high measurement accuracy and strong environmental adaptability, no heating heat sink device required, it can quickly and accurately measure the hemispherical emissivity of materials, widely used in building energy conservation, aerospace, coating material research and development and quality inspection fields.
2. Core Features
- Ultimate portable design: Integrated LCD screen emissivity probe structure replaces the traditional host + probe mode, the total weight of the whole machine is ＜1kg, equipped with a special portable hand case, convenient for storage and carrying, suitable for on-site mobile testing scenarios.
- Simple and efficient operation: Simplified measurement steps without complex debugging, the emissivity value can be directly and intuitively read through the LCD screen, no professional training required for quick operation, greatly improving testing efficiency.
- High precision and stable measurement: Emissivity measurement accuracy ±1%, repeatability ±0.01, resolution 0.01, the data is accurate and reliable; no heating required for the heat sink device, less affected by ambient temperature, ensuring measurement stability in different scenarios.
- Energy-saving and low-power operation: The total power of the whole machine is only 20W, the energy consumption is one tenth of the traditional equipment, energy saving and environmental protection, no excessive power consumption burden for long-term use, suitable for outdoor testing needs without stable power supply.
- Wide material adaptation range: Specially designed for coated glass, reflective thermal insulation coatings, camouflage coatings, aerospace special coatings and other materials, the sample specification only needs to be larger than diameter 58mm, suitable for testing a variety of coating and plate samples.
- Standardized calibration configuration: Standard equipped with high emissivity black standard plate and low emissivity silver standard plate, which can quickly complete equipment calibration and ensure the consistency of measurement accuracy during long-term use.
- Integrated core components: The emissivity probe integrates a controllable heater, single-chip microcomputer and display screen, with compact structure and complete functions, excellent thermal conductivity, ensuring the temperature consistency of the test plate and heat sink, improving measurement accuracy.
- International standard compatibility: Compliant with the international standard ASTM C1371-2004a (2010)e1, the test results have universality and authority, meeting the industry quality inspection and compliance requirements worldwide.
3. Specification Parameters
| Item | Detailed Parameters |
|---|---|
| Model No. | Atomfair-HE-369 |
| Measuring Range | 0.03-0.95 |
| Accuracy | ±1％ |
| Repeatability | ±0.01 |
| Resolution | 0.01 |
| Sample Specification | Larger than diameter 58mm |
| Test Ambient Temperature | 15-25℃ |
| Power Supply | DC12V Adapter |
| Power | 20W |
| Weight | ＜1Kg |
| Core Components | Integrated LCD screen emissivity probe (Including controllable heater, single-chip microcomputer, display screen) |
| Calibration Configuration | High emissivity black standard plate, Low emissivity silver standard plate |
| Auxiliary Device | Heat sink device (Good thermal conductivity, ensure temperature consistency) |
| Storage Accessory | Portable hand case |
| Applicable Standard | ASTM C1371-2004a (2010)e1 |
4. Typical Applications
- Building energy conservation field: Hemispherical emissivity testing of reflective thermal insulation coatings, coated glass and other building materials, helping the evaluation and optimization of building energy-saving performance.
- Aerospace field: Emissivity testing of aerospace special coatings and camouflage coatings, ensuring that the spacecraft thermal control system and camouflage performance meet the standards.
- Coating material research and development: Determination of emissivity parameters in the research and development of new coating materials, providing data support for material formula optimization.
- Industrial quality inspection field: Factory quality testing of coating products, ensuring that the emissivity parameters meet international standards and customer requirements.
- Scientific research experiment scenarios: Research on the performance of coating materials in universities and research institutes, accurately obtaining hemispherical emissivity data to support the development of scientific research projects.
- Third-party testing institutions: Providing third-party testing services for construction, aerospace and other industries, issuing test reports that comply with international standards.
If you’re interested, have any questions, or have specific customization requirements, please feel free to contact us at inquiry@atomfair.com.
