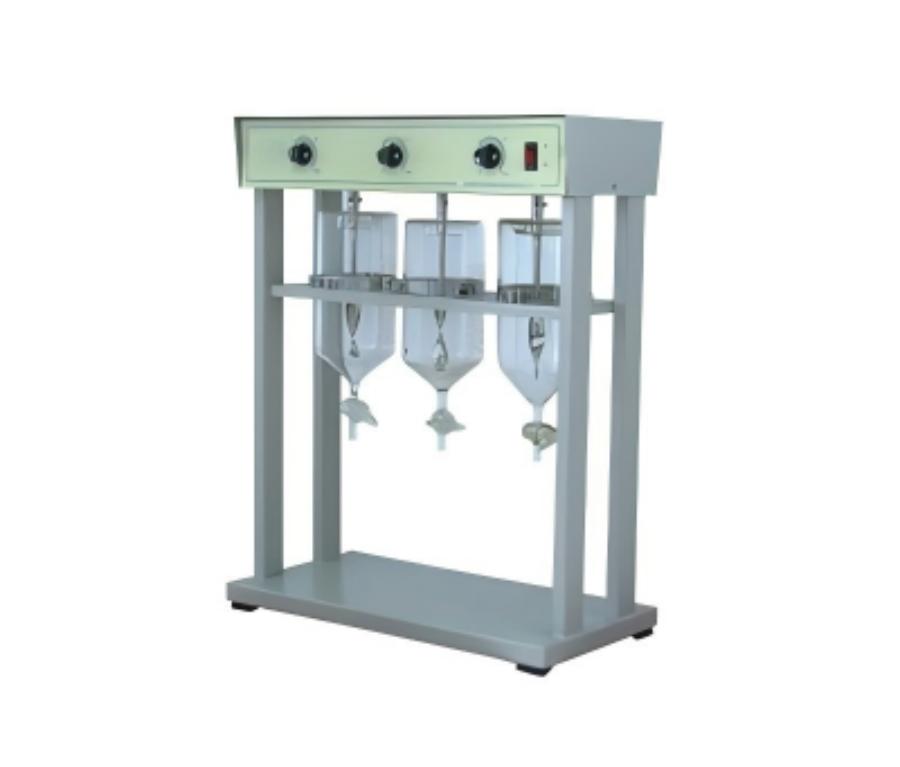

Atomfair AEX 817 Extraction Device
Product Overview
Atomfair AEX 817 Extraction Device is researched and manufactured in strict accordance with international standards, adopting the core technology of bidirectional rotating automatic extraction of stirrer, combined with mechanical automatic operation and timing function, which is an ideal alternative to manual separatory funnel extraction. It can process 3 samples of 1000ml synchronously at one time with high extraction efficiency and wide applicability, widely suitable for scenarios such as oil in water extraction, volatile phenol extraction and pharmaceutical industry, providing an efficient and reliable solution for sample pretreatment in multi-field laboratories.
Core Product Features
- Three groups of large volume parallel extraction with excellent batch efficiency: Support synchronous processing of 1000ml×3, the extraction time of a single sample is only 3 minutes, no batch operation is needed, greatly improving the pretreatment efficiency of mass large-volume samples and matching the high-frequency testing needs of laboratories.
- Easy operation to replace manual operation: Adopt mechanical automatic operation mode with accurate timing by time timer, completely get rid of the cumbersomeness and uncertainty of manual operation, reduce the workload of laboratory personnel and improve the standardization of operation.
- High-efficiency extraction with excellent recovery rate: Equipped with high-performance stainless steel stirrer, it can promote full mixing of extractant and sample, the extraction efficiency is >95%, the recovery rate is stable and reliable, ensuring the accuracy and repeatability of test data in line with international testing standards.
- Multi-scenario adaptation with wide applicability: Not only suitable for oil in water extraction, but also flexibly applied to volatile phenol extraction and pharmaceutical industry related sample processing, meeting the diversified pretreatment needs of multi-field laboratories.
- Compact, energy saving and durable: The overall dimension is 510×255×650mm with compact structure without occupying too much laboratory space; the total machine weight is 20kg, easy for fixed placement and movement; the input power is only 30W, energy saving and environmental protection for long-term operation, core components are made of high-quality materials with stable operation, low failure rate, low maintenance cost and long service life.
Technical Parameters
| Technical Index | Specific Parameter |
|---|---|
| Working mode | Bidirectional rotating automatic extraction of stirrer |
| Single extraction capacity | 1000ml×3 |
| Extraction efficiency | >95% (Recovery rate) |
| Single sample extraction time | 3min |
| Input power | 30W |
| Power supply specification | 220V 50Hz |
| Overall dimension | 510×255×650mm |
| Total machine weight | 20kg |
| Core configuration | High-performance stainless steel stirrer, time timer |
| Applicable scenarios | Oil in water extraction, volatile phenol extraction, pharmaceutical industry sample processing, etc. |
If you’re interested, have any questions, or have specific customization requirements, please feel free to contact us at inquiry@atomfair.com.
