Description

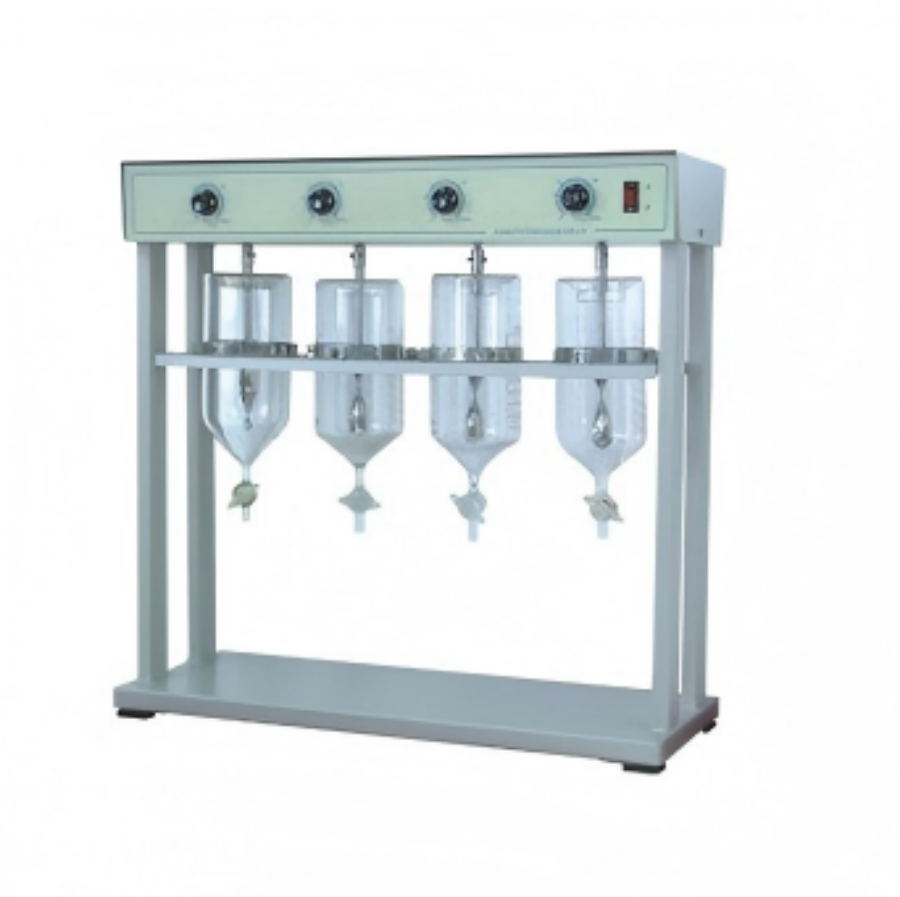

Atomfair AEX 649 Extraction Device
Product Overview
Atomfair AEX 649 Extraction Device is researched and manufactured in strict accordance with international standards, adopting the core technology of bidirectional rotating automatic extraction of stirrer, focusing on the pretreatment demand of laboratory mass large-volume samples. It can process 4 samples of 1000ml synchronously at one time with fast extraction speed, high efficiency and stable effect, widely suitable for high-frequency large-volume sample processing scenarios such as chemical analysis, environmental monitoring and water quality testing, providing efficient and reliable sample support for subsequent accurate testing.
Core Product Features
- Four groups of large volume parallel extraction with excellent batch efficiency: Support synchronous processing of 1000ml×4, the extraction time of a single sample is <3 minutes, no batch operation is needed, greatly shortening the pretreatment cycle of mass large-volume samples, perfectly matching the high-load testing needs of laboratories.
- High-efficiency extraction with accurate data: Extraction efficiency is >95%, the bidirectional rotating design of the stirrer promotes full contact and deep mixing of samples and extractants, each sample is extracted uniformly and thoroughly, ensuring the accuracy and repeatability of test data in line with international testing standards.
- Compact layout with good space adaptability: The overall dimension is 660×255×650mm, compact structure without redundancy while carrying the processing capacity of four groups of large volume; the total weight of 26kg is easy for fixed placement and flexible movement, suitable for space planning of various laboratories.
- Energy saving, economical and durable: Input power is only 40W, energy saving and environmental protection for long-term operation without high energy consumption burden; core components are made of high-quality materials with reliable design, stable operation and low failure rate, low maintenance cost and long service life.
- Easy operation and quick to master: Automatic extraction mode without complicated parameter debugging, no professional skills required for proficient operation, suitable for laboratory operators of different levels, reducing the cost of personnel training and daily operation.
Technical Parameters
| Technical Index | Specific Parameter |
|---|---|
| Working mode | Bidirectional rotating automatic extraction of stirrer |
| Single extraction capacity | 1000ml×4 |
| Extraction efficiency | >95% |
| Single sample extraction time | <3min |
| Input power | 40W |
| Power supply specification | 220V 50Hz |
| Overall dimension | 660×255×650mm |
| Total machine weight | 26kg |
If you’re interested, have any questions, or have specific customization requirements, please feel free to contact us at inquiry@atomfair.com.
