Description

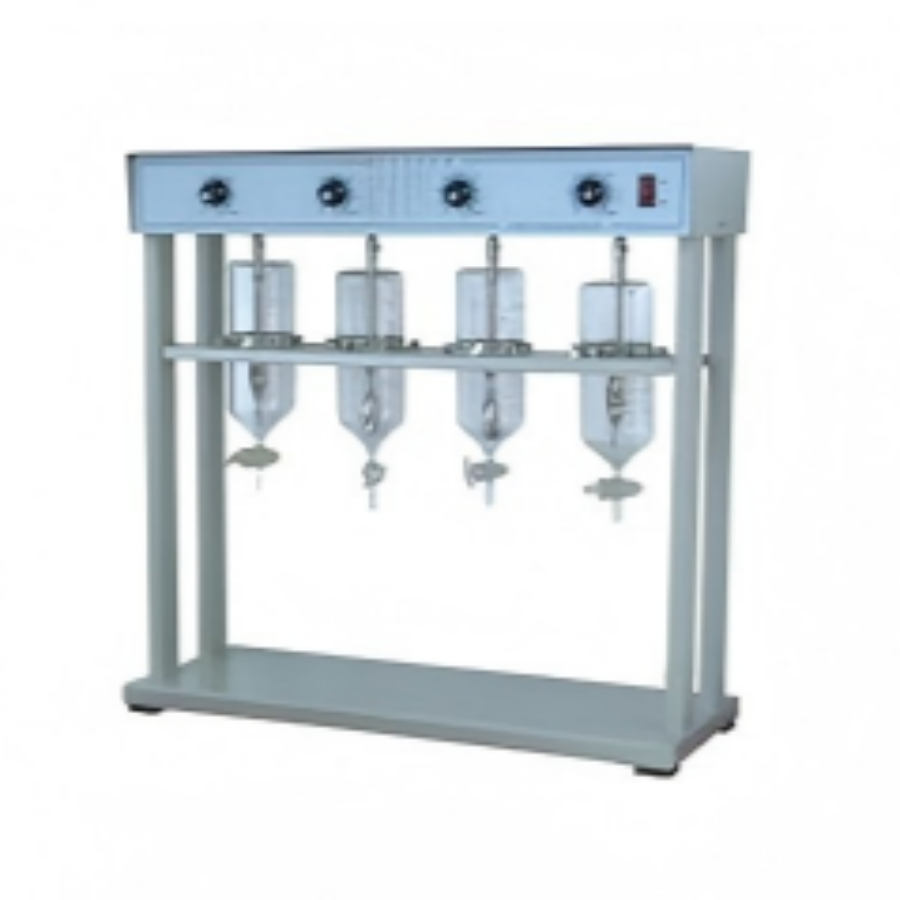

Atomfair AEX 573 Extraction Device
Product Overview
Atomfair AEX 573 Extraction Device is researched, developed and manufactured in accordance with international standards, with the core of bidirectional rotating automatic extraction technology of stirrer, focusing on the pretreatment demand of laboratory mass samples. It can process 4 samples of 500ml synchronously at one time with fast extraction speed and high efficiency, suitable for high-frequency and multi-sample testing scenarios such as chemical analysis, environmental monitoring and water quality testing, providing efficient and stable sample processing guarantee for subsequent accurate testing.
Core Product Features
- Four samples parallel extraction with peak batch efficiency: Support synchronous processing of 500ml×4, the extraction time of a single sample is <3 minutes, no batch operation is needed, the pretreatment efficiency of mass samples is improved by leaps and bounds, perfectly matching the high-load testing demand of laboratories.
- Ultra-high extraction efficiency and uniform effect: The extraction efficiency is >95%, the bidirectional rotating design of the stirrer promotes full contact and deep mixing of samples and extractants, each sample is extracted uniformly and thoroughly, ensuring the accuracy and repeatability of test data.
- Scientific layout and space adaptation: The overall dimension is 660×255×650mm, with compact structure without redundancy while carrying the processing capacity of four samples; the total weight of 24kg is easy for fixed placement and movement, suitable for space planning of various laboratories.
- Low power consumption, energy saving and durable: The input power is only 40W, energy saving and environmental protection for long-term operation without high energy consumption burden; core components are made of high-quality materials with reliable design, stable operation and low failure rate, low maintenance cost and long service life.
Technical Parameters
| Technical Index | Specific Parameter |
|---|---|
| Working mode | Bidirectional rotating automatic extraction of stirrer |
| Single extraction capacity | 500ml×4 |
| Extraction efficiency | >95% |
| Single sample extraction time | <3min |
| Input power | 40W |
| Power supply specification | 220V 50Hz |
| Overall dimension | 660×255×650mm |
| Total machine weight | 24kg |
If you’re interested, have any questions, or have specific customization requirements, please feel free to contact us at inquiry@atomfair.com.
