Description

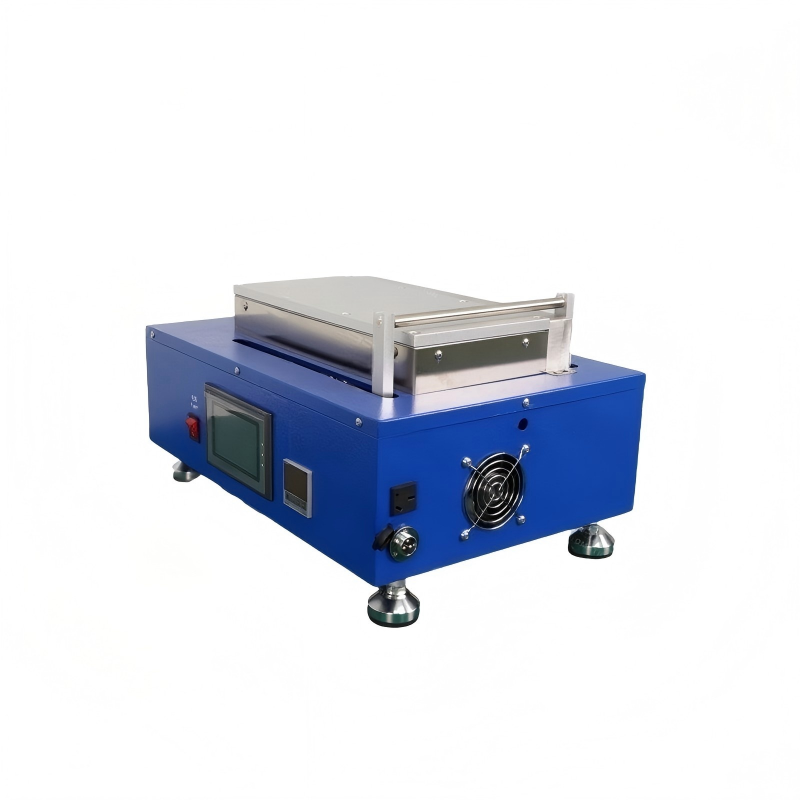

Atomfair-ACU-8526 Automatic Coater

Product Overview

This equipment is widely used in various coating research fields, suitable for the preparation of ceramic films, crystal films, battery material films and special nano-films. It is compact and exquisite, suitable for laboratory and small-batch coating research scenarios.

Functional Features

• Coating speed can be freely adjusted within the range of 0~100mm/s to meet the speed requirements of different coating processes.
• Equipped with a vacuum aluminum flat plate for quick placement and removal of substrates to improve operation efficiency.
• The stroke can be adjusted between 10~250mm through an inductive proximity switch, with flexible and accurate adjustment.
• Comes with a micron-level adjustable coater (accuracy 0.01mm) and a 100mm wide scraper to achieve high-precision coating.
• Small overall size, effectively saving installation and placement space.
• Exquisite appearance, with sheet metal adopting three-dimensional geometric design and a simple and elegant shape.

Technical Parameters

Item	Specification
Coating Speed	0-100mm/s
Maximum Stroke	300mm
Vacuum Plate	With vacuum aluminum flat plate
Vacuum Plate Size	L415mm×W200mm×H30mm
Scraper Adjustable Range	0.01-3.5mm
Power Supply	220V/50Hz
Weight	50KG
Overall Dimension	L500mm×W310mm×H200mm

If you’re interested, have any questions, or have specific customization requirements, please feel free to contact us at inquiry@atomfair.com.
