Description

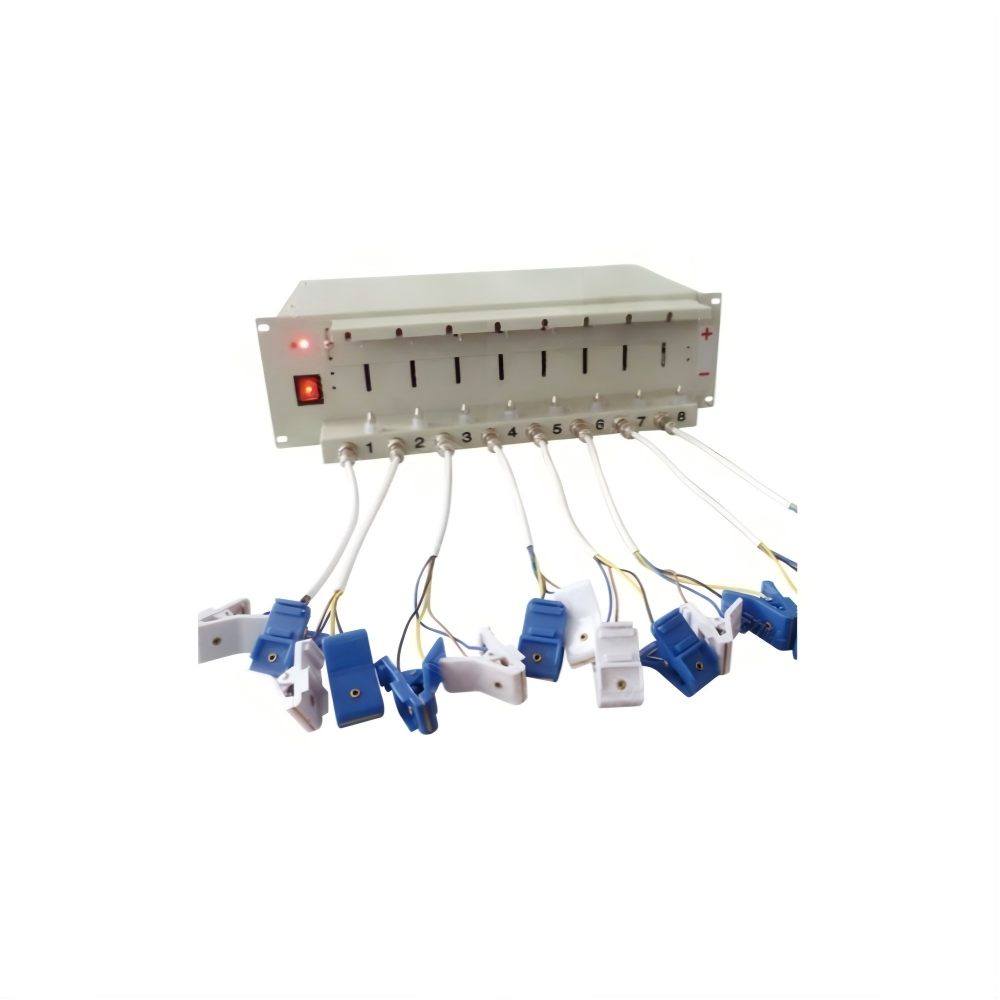

Atomfair 8-Channel Battery Tester

Basic Information

• Model: Atomfair-BT8001
• Application: Used to test the comprehensive performance of various batteries, suitable for universities and research institutions
• Launch Date: 2022-03-01
• Dimensions: 480*380*130 mm
• Weight: 50 KG
• Version: V2.0

Product Description

This 8-channel battery tester can accurately measure the comprehensive performance of various batteries. It is equipped with 8 independent programmable channels, built-in power supply and full control circuit, featuring precise programmability, complete controllability and Windows-based software interface. Stable performance and easy operation. The range can be customized according to customer requirements (such as 5V1mA, 5V10mA, 5V3A).

Features

• Each module has 8 independent programmable channels with built-in power supply and complete control circuit, supporting synchronous or independent multi-channel testing.
• Each module can work independently. Different working modes can be set for each channel. All channels are fully independent and non-interfering, ensuring high test accuracy.
• Precise programmability: The system software can flexibly set working steps and parameters. Each working step can be adjusted according to test requirements, adapting to various battery test scenarios.

Technical Parameters

Item	Atomfair-BT8001	Atomfair-BT8002	Atomfair-BT8003
Input Power	AC110-220V	AC110-220V	AC110-220V
Power	30W	30W	30W
Voltage Range	0-5V	0-5V	0-5V
Current Range	±0.002-1mA	±0.1-10mA	±3-3000mA
Current Measurement Accuracy	±0.2% Reading +0.1% Range	±0.2% Reading +0.1% Range	±0.2% Reading +0.1% Range
Voltage Measurement Accuracy	±0.1% Reading +0.05% Range	±0.1% Reading +0.05% Range	±0.1% Reading +0.05% Range
Cycle Measurement Range	1-9999 Times	1-9999 Times	1-9999 Times
Time Measurement Resolution	Second	Second	Second
Input Impedance	≥10MΩ	≥10MΩ	≥10MΩ
Product Dimensions	480*380*130mm	480*380*130mm	480*380*130mm

If you’re interested, have any questions, or have specific customization requirements, please feel free to contact us at inquiry@atomfair.com.
