Description

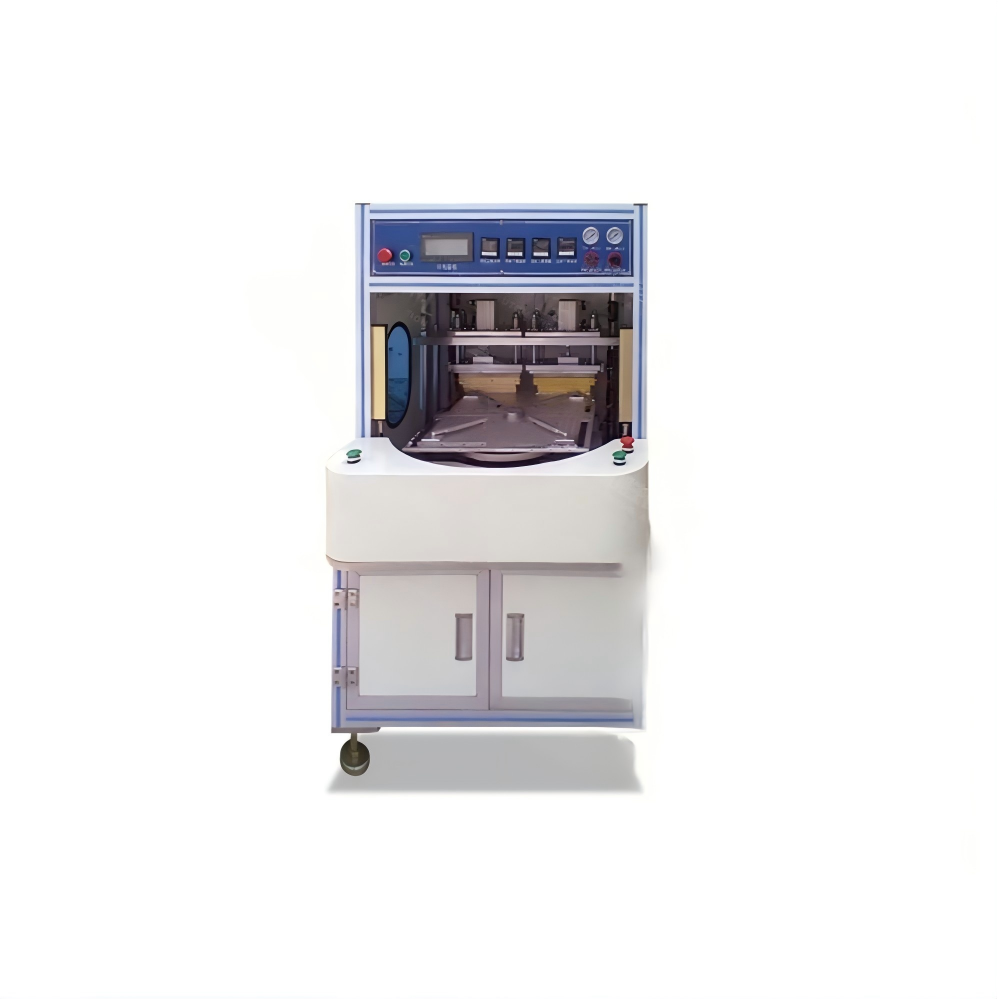

Atomfair 4-Station Rotary Top & Side Sealing Machine

Model: Atomfair?RTS369
Launch Date: 2022?03?01
Version: V2.0
Weight: 800KG

Application

Suitable for top and side sealing of pouch lithium-ion batteries of various specifications.

Product Description

The machine features easy operation, high efficiency, stable precision and good consistency. It supports quick model change and is compatible with both hard and soft sealing processes.

Key Features

• Easy operation, high efficiency, stable precision and good consistency
• Quick model change, compatible with hard and soft sealing
• Adjustable stroke for upper and lower molds
• High-speed precision cam roller divider with high indexing accuracy
• Uniform sealing effect, high qualification rate and equipment uptime

Technical Parameters

Item	Specification
Suitable Model	200 Type
Sealing Width	Top seal: 3.5mm (soft seal, silicone plate on lower mold) Side seal: 6mm (hard seal for upper & lower molds, upper mold limit height 0.18mm) Custom hard seal heads available for top sealing
Sealing Thickness	0.16?0.3mm
Sealing Head Temperature	Room temperature ~ 230? adjustable with compensation, control accuracy ±3?
Sealing Time	0?99.9 seconds adjustable
Rotary Feeding Accuracy	High-speed precision cam roller divider, indexing accuracy ? 30?
Head Parallelism	±0.01mm (testable with triple carbonless copy paper)
Capacity	400?500 pcs/hour (depending on operation efficiency)
Equipment Uptime	95%
Product Qualification Rate	99%
Upper & Lower Mold Stroke	Adjustable

If you’re interested, have any questions, or have specific customization requirements, please feel free to contact us at inquiry@atomfair.com.
