Description
1. Basic Product Information

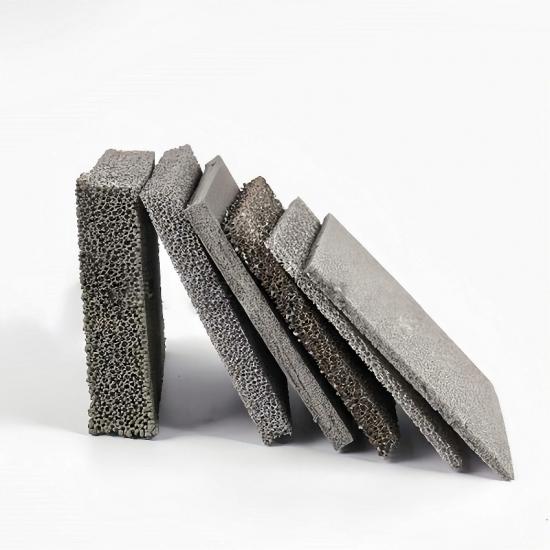

- Product Name: 3D Open-Cell Foam Aluminum
- Core Definition: A type of foam aluminum with interconnected internal pores, combining metallic properties and a porous structure. Its core advantages lie in excellent sound absorption performance and fire resistance.
2. Core Performance Parameters
2.1 Structural Parameters
- Pore Size: 0.5-1.0mm (corresponding to pore size specifications of 10PPI, 20PPI, 30PPI; customization available)
- Porosity: 70%-90%
- Open-Cell Rate: 98% (Note: Marked based on the product’s actual performance to ensure alignment with application characteristics)
- Purity: 93%
- Standard Thickness: 10mm
2.2 Functional Performance
- Sound Absorption Performance: The noise reduction coefficient (NRC) is ＞0.75. Sound absorption is achieved through the abrupt cross-sections formed by internal micro-channels and pores, as well as a large number of side-branch Helmholtz resonance cavities. Its sound absorption effect on medium and low frequencies is significantly better than that of traditional materials. (Sound Absorption Mechanism: Breaks through the limitations of conventional viscous sound absorption and heat conduction sound absorption, and enhances resonant sound absorption.)
- Fire Resistance: Fire rating reaches Class A1 (the highest fire rating, suitable for scenarios with high safety requirements).
3. Standard Specifications (Length × Width × Thickness)
- 100mm × 100mm × 10mm (pore size: 20PPI)
- 50mm × 50mm × 10mm (pore size: 20PPI)
For more pore sizes (10PPI, 20PPI, 30PPI and customized pore sizes) and dimensions, please feel free to consult us.
If you’re interested, have any questions, or have specific customization requirements, please feel free to contact us at inquiry@atomfair.com.
